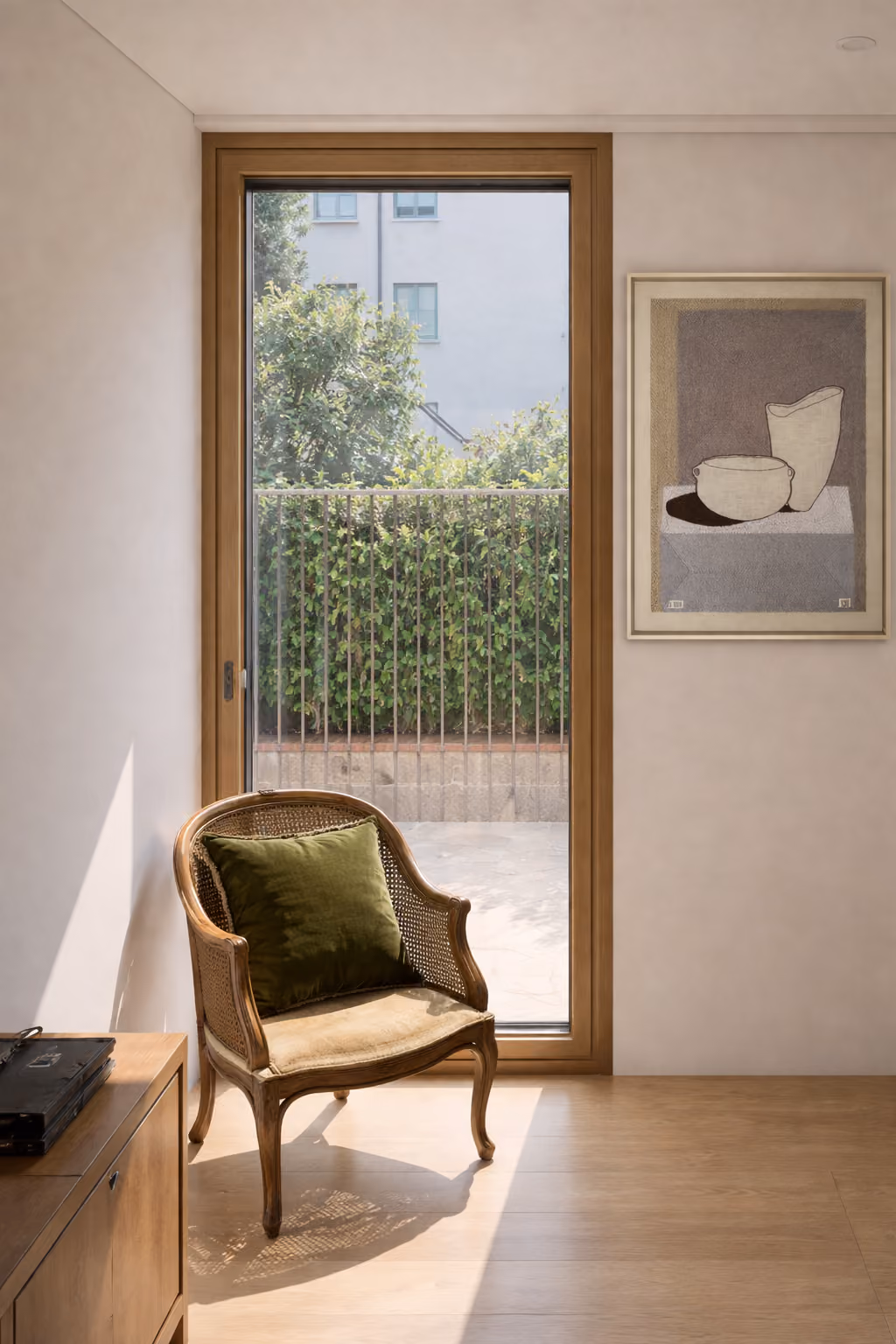

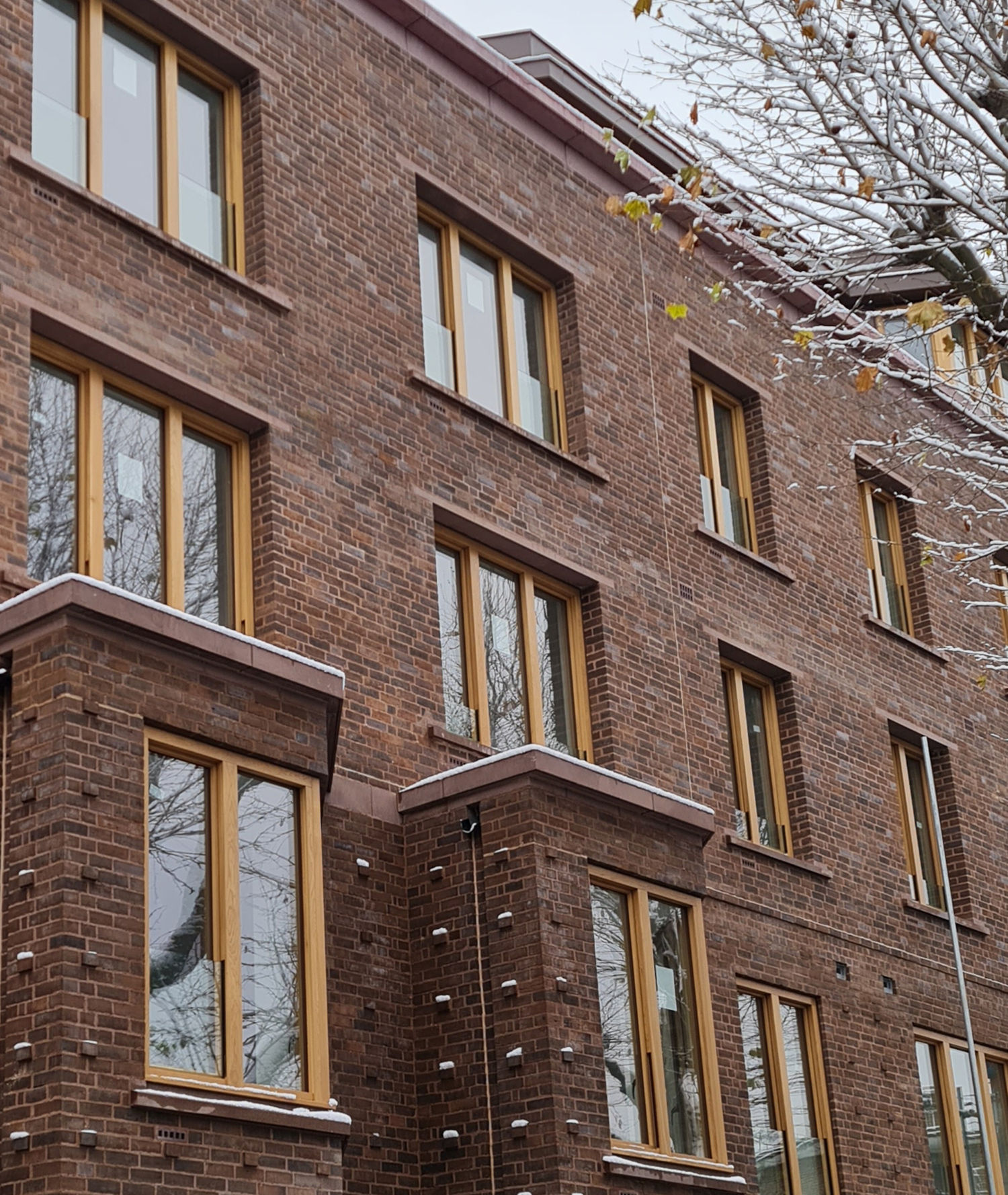

Tilt & Turn

The Tilt & Turn window is a versatile dual-function window system that tilts inward for controlled ventilation or opens fully for easy access and cleaning. Combining flexibility with clean, contemporary detailing, it is particularly suited to modern homes, apartments and multi-storey applications. Designed to accommodate expansive glazing and uninterrupted views, it delivers a refined architectural aesthetic alongside high levels of performance and security.
Delete
Delete

Tilt and Turn

The collection is presented across two distinct ranges:
PureWood
A fully timber solution that pairs performance with interior customisation. Different wood species can be specified for the external and internal faces; with the exterior selected for durability and weather resistance, and the interior tailored to suit internal finishes. This approach delivers a robust external envelope without compromising on internal warmth and material character.
Key features
  • Up to 3m tall window/ balcony door
  • Sash size: 78/90mm
Timber specification

Internal and external timber options available.

Performance

PAS24 tested

Glazing options
  • Glass unit: 14-52mm
  • Offered in double and triple glazing, with a range of DGU configurations available. Refer to the specification for full details.
Frame composition
  • Timber/Timber
Aluminium Clad
A timber window system enhanced with aluminium cladding externally, delivering increased durability and a sharper, contemporary aesthetic. This configuration combines the natural qualities of timber internally with a high-performance, robust external skin.  The aluminium cladding is available in four profile styles:  AluStandard, AluFlush, AluModern, AluRetro
Key features
  • Up to 3m tall window/ balcony door
  • Sash size: 78/90mm
Frame composition

Timber/Aluminium

Internal timber specification

Soft and hardwood options available

Glazing options
  • Glass unit: 36-62mm
  • Offered as a triple glazed system ensuring the best thermal, safety or acoustic properties. Refer to the specification for full details.
External aluminium cladding profile style
  • Alu-standard
  • Aluflush
  • Alu-modern
  • Alu-retro

Spring Balance Sash

Classic
Suitable for properties free of conservation constraints
Key features

Spring loaded mechanism

Details

Face applied glazing bars

Performance

PAS24 tested

Glazing options
  • 4-6-4 (14mm DGU)
  • 4-12-4 (20mm DGU)
  • 4-16-4 (24mm DGU)
  • 7.7mm - 10.3mm vacuum glass
  • 4-14-4-14-4 (40mm triple glazed)
Specification options
  • Material specification options
  • Glazing specification options
Key features

Spring loaded mechanism

Details

True solid glazing bars with external putty beads.

Performance

PAS24 not applicable to this range

Slimline glazing
  • 4-4-4  12mm DGU
  • 4-6-4  14mm DGU
  • 11.3mm Heritage vacuum glass
Specification options
  • Material specification options
  • Glazing specification options
Overview of key features within the Sliding Sash collection. Alternative glazing options and configurations are available.
Box Sash Spring Balance
Range
Sash
Depth
PAS 24
Part Q
Glazing
Glazing Bars
Operation
Box SashClassic
56mm
Yes
4-16-4 · 24mm DGU
Face-applied glazing bars, internally beaded
Cords & weights
Box SashClassic
50mm
Yes
4-6-4 · 14mm DGU
4-12-4 · 20mm DGU
Vacuum glass
Face-applied glazing bars, internally beaded
Cords & weights
Box SashClassic
73mm
Yes
4-14-4-14 · 40mm triple glazed
Face-applied glazing bars, internally beaded
Cords & weights
Box SashConservation
50mm
No
Slimline double glazing4-4-4 · 12mm DGU
4-6-4 · 14mm DGU
Heritage vacuum glass
True solid glazing bars, externally glazed with hand-applied putty
Cords & weights
Box SashPeriod
44mm
No
4mm single glazed
Heritage vacuum glass
True solid glazing bars, externally glazed with hand-applied putty
Cords & weights
Spring BalanceClassic
56mm
Yes
4-16-4 · 24mm DGU
Face-applied glazing bars, internally beaded
Spring balance mechanism
Spring BalanceClassic
50mm
Yes
4-6-4 · 14mm DGU
4-12-4 · 20mm DGU
Vacuum glass
Face-applied glazing bars, internally beaded
Spring balance mechanism
Spring BalanceClassic
73mm
Yes
4-14-4-14 · 40mm triple glazed
Face-applied glazing bars, internally beaded
Spring balance mechanism
Spring BalanceConservation
50mm
No
Slimline double glazing4-4-4 · 12mm DGU
4-6-4 · 14mm DGU
Heritage vacuum glass
True solid glazing bars, externally glazed with hand-applied putty
Spring balance mechanism
