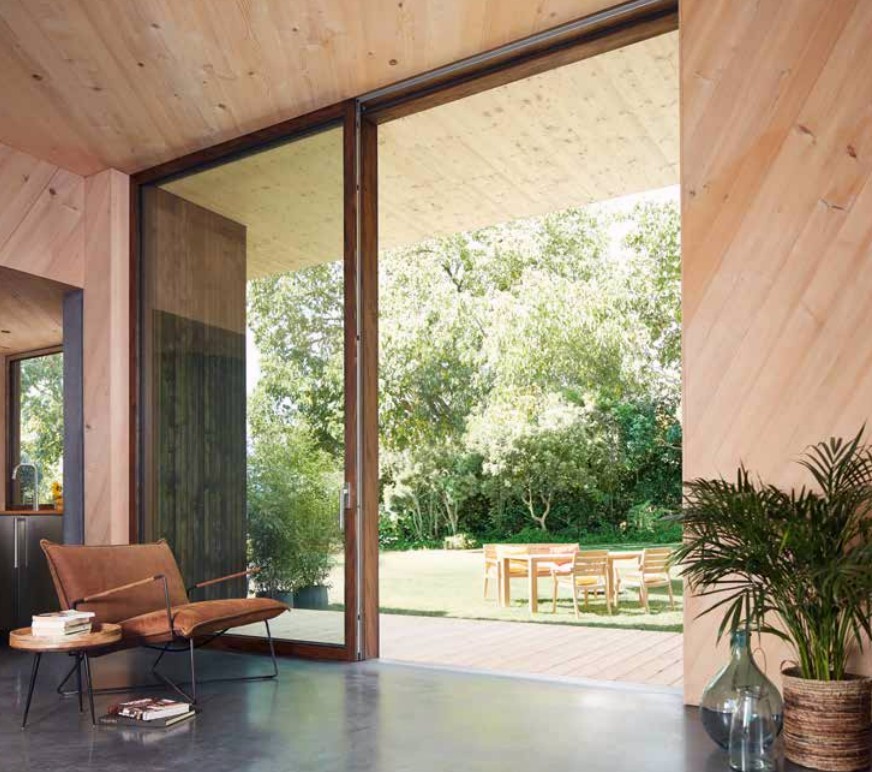

Doors: Sliding Timber Doors
A range of configurations are available, with up to 3 panels sliding to each side. Panels can stack to one or both sides an opening width up to 12 m and a total width of approx. 20 m.
All door configurations can accommodate variations in panel design and glazing specification, and can be combined with fanlights and sidelights to suit the overall composition.
Frame sightline: 60mm-78mm
Maximum door height: 3300mm*
Maximum door width: 1000mm*
Door thickness: 56–69mm (depending on glazing specification)
*Maximum door weight: 100kg
Energy Storage - Door operation
this "energy storage" spring hidden in the comfort gear uses the weight of the sash to lift it even more easily. The positive control is decisive for larger parallel doors: merely turning the handle moves the sash conveniently into the desired position.
Integrated night vent
The night vent is standard for lift-slide systems. This allows for an efficient night vent with optimal air exchange at any time simply by using the handle. With motorised operation, the night vent can even be programmed to allow the sash to close of its own accord.
Optional additions: SOFT CLOSE function upgrade for the manual operation of our sliding and lift-slide systems. Especially when closing extremely heavy sashes, it ensures secure ease of use by braking the sash while it runs into its end position, gently and securely drawing the sash into its final locking position.
Smart lift-slide system
automatically opens and closes lift-slide doors with a sash weight of up to 400 kg at the press of a button. The concealed lift drive ensures reliable locking and unlocking of extremely large windows and, along with the discreet, matt, stainless steel button, creates a highly attractive look. The sash can be opened or closed either by this button, via remote control, or conveniently from a smartphone via app
68mm door construction accommodates double glazing:4-16-4, (24mm DGU)
78mm door construction accommodates triple glazing. 36mm-40mm4-12-4-12-4 (36mm)
4-14-4-14-4 (40mm Triple glazed).
We offer an extensive range of stains and colours, including any shade from popular paint ranges. If you have a specific colour in mind, we can match it.
Level threshold
ECO PASS threshold for timber-aluminium sliding doors clears the way for barrier-free living doubling into which the running rail is skilfully integrated. ECO PASS SKY axxent is also convincing in terms of sill installation. SIEGENIA has cooperated with leading drainage system manufacturers to achieve this purpose. design harmonisation of threshold and exterior area gives the appearance that it is all one unit.
Resistance class 1 (RC1N)
Standard protection against break in attempts with physical violence and vandalism.
Optional additions:
Resistance class 2 (RC2)
Additional protection against simple tools like screwdrivers; recommended as minimum protection.
Resistance class 3 (RC3)
Additional protection against tools like crowbars; recommended in case of higher security demands AEROCONTROL monitoring system supports the mechanical burglar resistance. A magnetic switch integrated in the hardware registers an opened sliding door and reports this to the central monitoring unit. lockable handles and gears with profile cylinders in the programme.
