Spring Balance Sash: Classic

Each sliding sash window is designed with accurate proportions and traditional detailing, and is available in either box sash or spring balanced construction.

Specifications

While every window is made bespoke, these are the core specification areas worth considering before finalising your project.

Spring Balance Classic frames accommodate the following glazing units, depending on sash depth:

  • 50mm Vacuum glass – 20mm DGU
  • 56mm Vacuum glass – 24mm DGU
  • 73mm 40mm triple glazed

A range of glazing specifications is available to suit thermal, acoustic and visual requirements.

Refer to our Design Guide for further information, or contact our team to determine the most appropriate solution for your project.

Our sash windows are manufactured from premium, sustainably sourced timber, including pine, sapele, European oak, Accoya, and engineered hardwoods such as Red Grandis.

Additional timber species can be sourced for bespoke applications, subject to availability and suitability.

Refer to our Design Guide for further information on timber specification options.

We offer an extensive range of stains and colours, including any shade from popular paint ranges.

If you have a specific colour in mind, we can match it.

Take a look at our Design Guide for further information.

Paint Colours
Stain Colours

Working closely with leading component manufacturers, we carefully select high-quality hardware that delivers both excellent performance and refined detailing.

Take a look at our Design Guide for our full standard catalogue.

If you have a particular product in mind that is not covered in our ranges, please let us know and we can check compatibility.

A PAS24-tested window is available, compliant with Part Q of the Building Regulations.

Enquire for further details on ironmongery and certification.

Glazing bars are available in a range of profiles, with varying depths and detailing to suit both contemporary and traditional designs.

Face-applied glazing bars are used within the Spring Balance Classic range.

Available glazing bar profiles include:

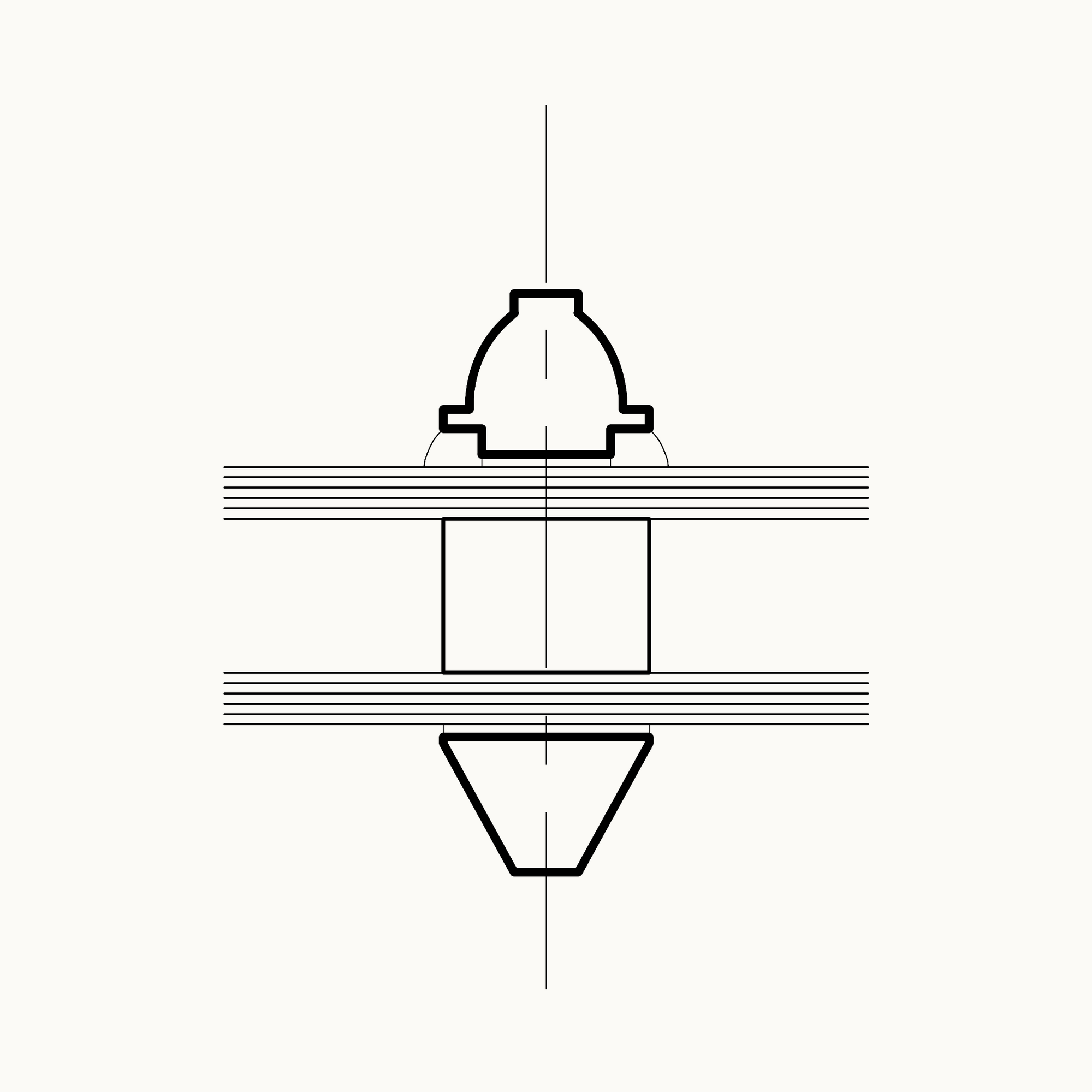

  • 16mm Ovolo
  • 18mm Lambs Tongue

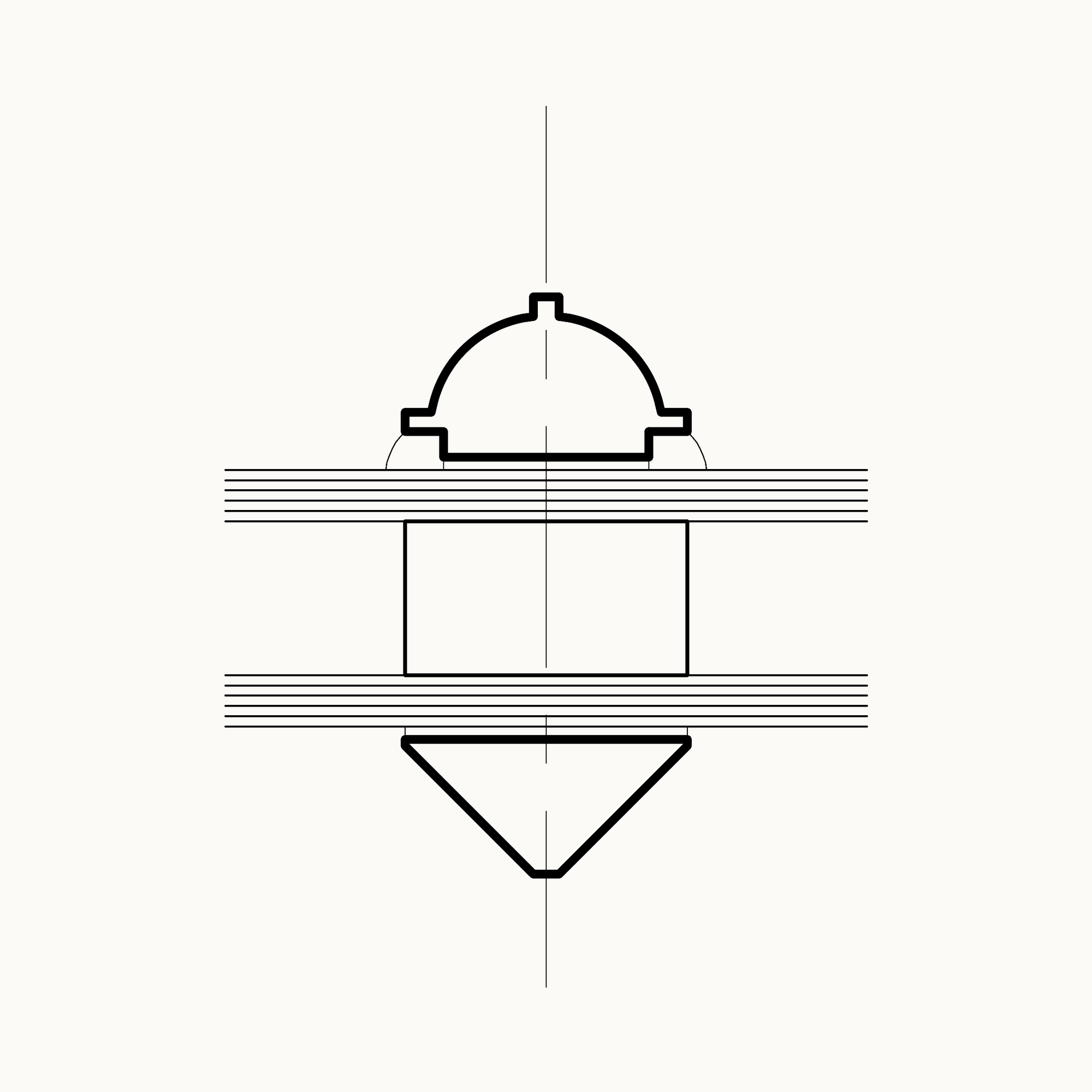

  • 22mm Ovolo
  • 25mm Ovolo
  • 25mm Lambs Tongue

Bespoke profiles can be machined to suit specific project requirements, including the replication of existing or historic details.

Duplex bars are available in black, white, grey and brown finish.

Duplex Spacer Bar

Explore the Range

Spring Balance sash windows are also available in a Conservation range, suited to properties with more specific planning requirements.
